Lenovo IdeaCentre AIO 5 Repair — Australia-Wide
Last Updated:
Need Lenovo IdeaCentre AIO 5 repair? The Original PC Doctor fixes the Lenovo IdeaCentre AIO 5 for every common fault — won’t power on, no display, overheating, storage failure, BIOS and Windows problems — onsite, remotely, or in our workshop, anywhere in Australia. No fix, no fee, with a 90-day warranty.
Fast, professional Lenovo IdeaCentre AIO 5 repair — no fix, no fee.
✔ No fix, no fee · ✔ 90-day warranty · ✔ Onsite, remote & workshop · ✔ Since 2001
Common Lenovo IdeaCentre AIO 5 Faults We Repair
- Won’t turn on / no power
- Won’t boot / black screen on boot
- Screen, backlight or display faults
- Won’t connect to Wi-Fi or the internet
- Overheating or loud fan
- Hard drive / SSD failure (with data recovery)
- RAM faults / won’t POST
- Won’t wake from sleep

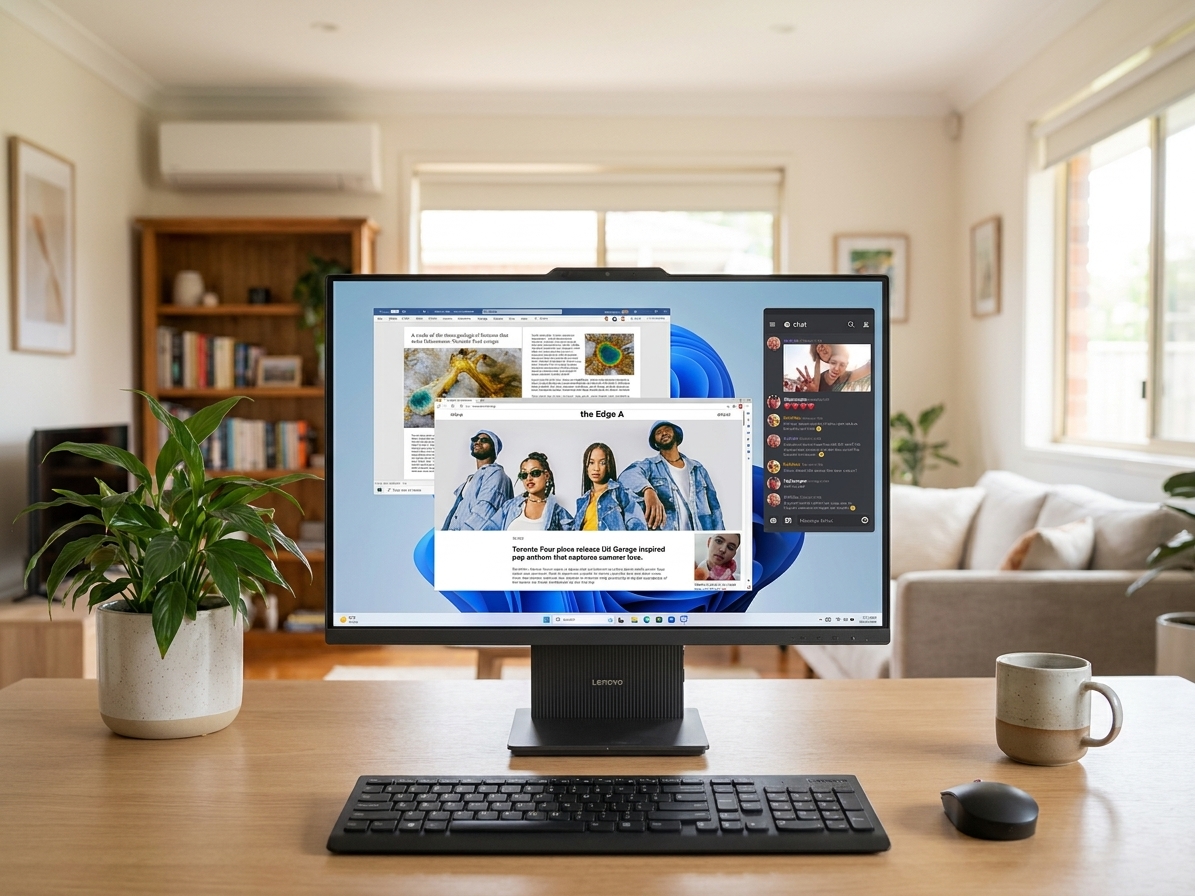

About the Lenovo IdeaCentre AIO 5
The Lenovo IdeaCentre AIO 5 is an all-in-one PC where the computer and screen are integrated, so display, power and storage repairs need care. We service every Lenovo IdeaCentre AIO 5 — screen and backlight faults, power, storage (with data recovery), memory and Windows issues — and can upgrade the SSD or RAM where possible. Out-of-warranty welcome.
Our Repair Process
1. Free phone or Quick Quote triage. 2. Diagnostic — we pinpoint the exact fault. 3. Upfront fixed quote — no fix, no fee. 4. Repair with quality parts and a 90-day warranty. Onsite, remote or in our workshop, Australia-wide.
Why The Original PC Doctor
- Since 2001 — 24+ years repairing Australian computers
- No fix, no fee diagnostics — you only pay if we solve it
- 90-day warranty on parts and labour
- Onsite, remote & workshop options to suit you
- Genuine / OEM-spec parts
- 1,300+ verified customer reviews
Get your Lenovo IdeaCentre AIO 5 repaired — talk to a technician now.
✔ No fix, no fee · ✔ 90-day warranty · ✔ Onsite, remote & workshop · ✔ Since 2001
Lenovo IdeaCentre AIO 5 Repair FAQs
How much does Lenovo IdeaCentre AIO 5 repair cost?
Every Lenovo IdeaCentre AIO 5 repair begins with a free, no-obligation Quick Quote. You get an upfront fixed price before any work starts, and our no-fix-no-fee promise means you only pay if we solve it. All repairs carry a 90-day warranty.
Can you recover data from a Lenovo IdeaCentre AIO 5?
Yes. We can recover documents, photos and files from your Lenovo IdeaCentre AIO 5’s SSD, NVMe or hard drive — even if it won’t boot or power on. Ask us to image the drive before any repair so your data is protected.
Do you repair the Lenovo IdeaCentre AIO 5 out of warranty?
Absolutely. We’re an independent repairer, so we fix Lenovo IdeaCentre AIO 5 units that are out of warranty or no longer supported by the manufacturer — usually faster and for less.
Where can you repair my Lenovo IdeaCentre AIO 5?
Australia-wide. We offer onsite visits, secure remote support, and workshop repair with nationwide pickup — whichever is fastest for you. Call 1300 723 628 to arrange.
Why won’t my Lenovo IdeaCentre AIO 5 turn on?
A Lenovo IdeaCentre AIO 5 that won’t power on is most often a failed power supply or adapter, a power-button or front-panel fault, or a motherboard issue. We diagnose it for free, give you a fixed-price quote, and most no-power faults are repairable — no fix, no fee.
My Lenovo IdeaCentre AIO 5 screen is black, dim or cracked — can you fix it?
Yes — on an all-in-one the screen is built in, so display, backlight and panel faults need careful repair. We diagnose whether it’s the panel, the backlight, the graphics or a cable, then repair or replace it.
Related: All In One Pc Repair · Lenovo Desktop Repair · Lenovo Yoga AIO 7 Repair · Lenovo Yoga AIO 9 Repair
Free Resources
Independent, non-commercial references:
Lenovo IdeaCentre AIO 5 Repair faults we repair every week
PSU board failure
Symptom: Won’t power on, no LED activity
How we fix it: Technician removes the rear cover, tests the 19 V rail at the DC-in jack and motherboard connector, then replaces the integrated 180 W power supply board mounted behind the stand hinge.
Repair or replace? repair
27-inch IPS panel backlight failure
Symptom: Black screen with faint image visible under torch test
How we fix it: Remove the display bezel and metal shield, disconnect the 40-pin eDP cable, fit a compatible LM270QQ1 or equivalent LED panel, then re-attach the LVDS and power cables.
Repair or replace? replace
M.2 NVMe SSD failure
Symptom: No boot, BIOS reports no drive detected
How we fix it: Open the lower access panel, remove the single M.2 2280 screw, clone the original drive to a new Samsung or WD NVMe module using an external enclosure, then reinstall and restore Windows.
Repair or replace? replace
Overheating CPU thermal paste degradation
Symptom: Loud fan, thermal throttling, random shutdowns after 20 minutes
How we fix it: Remove the rear cover and heatsink assembly, clean the copper block and die, apply fresh high-grade paste, then reassemble and verify fan curve in Lenovo Vantage.
Repair or replace? repair
8 GB soldered + slot RAM fault
Symptom: Won’t POST, continuous beep or blank screen
How we fix it: Power off, remove the lower panel, reseat or replace the single SODIMM in the accessible slot while the 8 GB soldered module remains; test with MemTest86 before closing.
Repair or replace? Depends
Wi-Fi 6 card loose antenna connection
Symptom: Intermittent wireless dropouts or no networks listed
How we fix it: Remove the stand cover, reseat the two antenna pigtails on the Intel AX201 M.2 card and confirm the card is fully seated in the PCIe slot.
Repair or replace? repair
Lenovo IdeaCentre AIO 5 Repair price guide
| Repair | Indicative price | Typical turnaround |
|---|---|---|
| Power supply board replacement | $220-$290+ | Same or next business day |
| 27-inch IPS panel replacement | $480-$620+ | 2-4 business days |
| M.2 NVMe SSD replacement with data clone | $195-$265+ | Same day |
| CPU thermal repaste and clean | $145-$185+ | Same day |
| RAM upgrade or reseat | from $149 | Same day |
| Wi-Fi card reseat or replacement | $110-$160+ | Same day |
| Full diagnostic and quote | from $149 | 2-5 business days |
Prices are indicative only — every job is confirmed with a free, no-obligation quote after diagnosis. No Fix, No Fee.
Lenovo IdeaCentre AIO 5 Repair — your questions answered
How much does it cost to replace the screen on a Lenovo IdeaCentre AIO 5?
A 27-inch IPS panel replacement for the IdeaCentre AIO 5 typically ranges from $480 to $620 including labour. The process involves removing the bezel, transferring the camera and microphone board, and fitting a compatible eDP panel. We provide an upfront quote after a quick visual inspection.
Can you recover data if the SSD has failed in my Lenovo IdeaCentre AIO 5?
Yes. We remove the M.2 NVMe drive, connect it to a hardware imager and attempt a sector-by-sector clone to a new SSD. Success depends on the extent of NAND wear; we advise on recovery chances before any charges apply.
Does the Lenovo IdeaCentre AIO 5 support RAM upgrades?
Most AIO 5 models have 8 GB soldered plus one accessible SODIMM slot. Upgrading or reseating the slot module can resolve POST failures and is a straightforward same-day job.
Why does my Lenovo IdeaCentre AIO 5 fan run constantly and the unit gets hot?
Dust buildup and dried thermal paste on the CPU heatsink are common after two to three years. We clean the fins, replace the paste and verify fan curves in Lenovo Vantage to restore quiet operation.
Is the power supply replaceable on the IdeaCentre AIO 5 or does the whole unit need replacing?
The 180 W PSU board is a separate module mounted behind the stand hinge and can be swapped without replacing the entire all-in-one. Labour usually takes under an hour once the correct board is sourced.
